Understanding golf shot parameters
Toptracer Coach provides a comprehensive set of parameters to help players and coaches understand performance and identify areas of improvement. This guide describes each parameter and how it can influence the shot outcome.

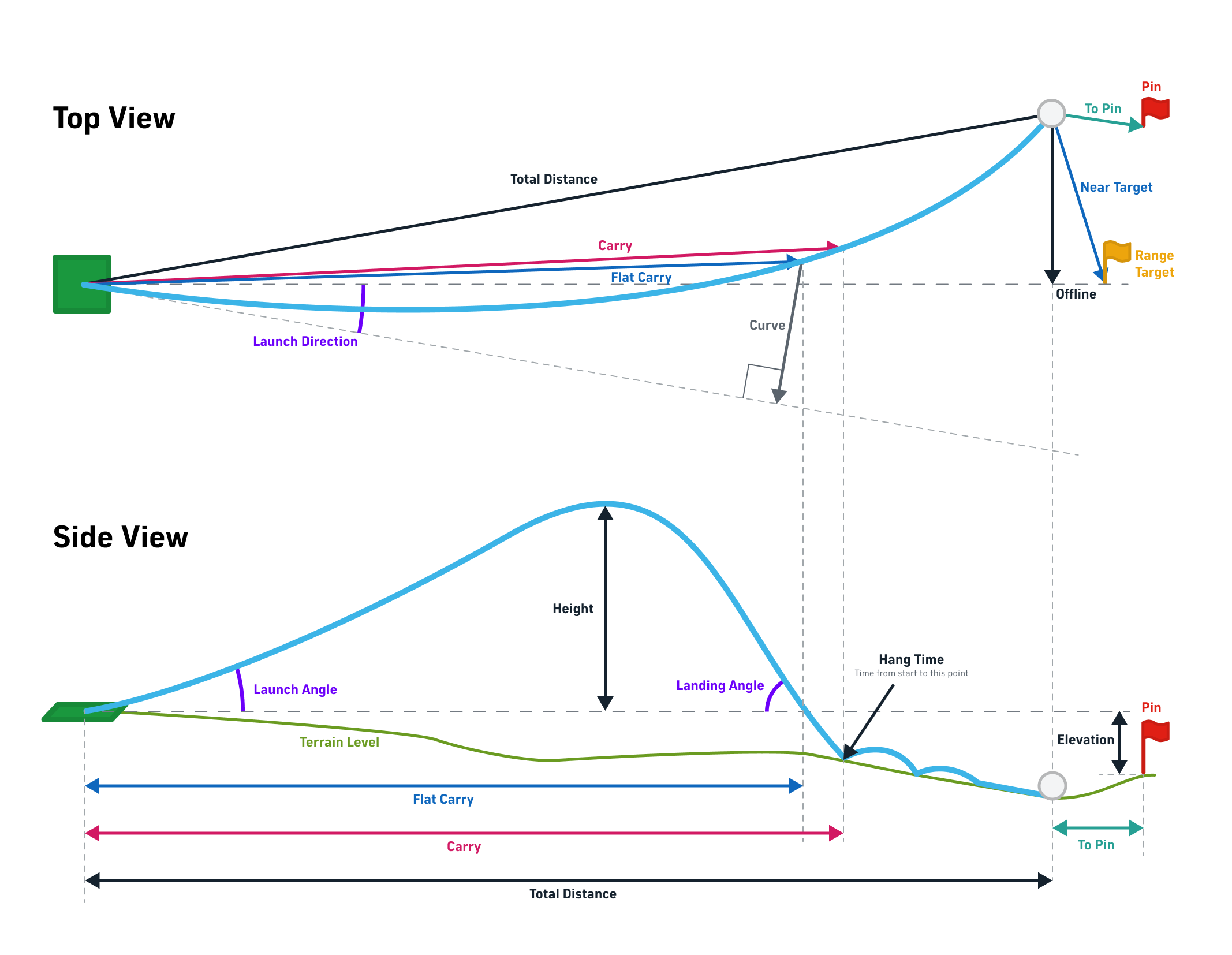

Flight
Flat Carry
The distance the ball travels through the air until it lands is measured to a flat target area at the same elevation as the hitting position.
Carry distance is key for planning approach shots, especially when navigating hazards like bunkers or water.
Total Distance
The full distance the golf ball travels from impact to its final resting position, including both carry and roll.
Total distance is influenced by ground conditions. A firmer ground often leads to more roll.
Curve
The left or right curvature of the ball’s flight, relative to its initial launch direction.
Curve results from spin axis tilt and affects how much a shot fades or draws.
Hang Time
The total time the ball remains airborne from impact to the first landing.
More hang time usually correlates with higher apex shots and softer landings.
Height
The maximum vertical height the ball reaches during its flight.
Higher apexes help clear obstacles and promote soft landings.
Offline
The final lateral distance between the ball’s resting position and the target line.
The closer to zero, the straighter the shot finished relative to the target.
Ball Launch
Ball Speed
The measured speed of the golf ball as it leaves the clubface.
Ball speed is largely determined by club speed and strike quality (centered hits maximize ball speed).
Landing Angle
The angle at which the ball descends and strikes the ground.
Higher landing angles help stop the ball faster on the green.
Launch Angle
The vertical angle at which the ball leaves the clubface relative to the ground.
Optimizing the launch angle can help maximize carry distance and control.
Spin Rate
The total revolutions per minute of the golf ball immediately after impact.
Higher spin can add control, while lower spin may increase distance for drivers.
Spin Axis
The tilt of the ball’s spin axis is responsible for producing draw or fade ball flights.
A neutral spin axis results in a straight shot.
Side Spin
The component of spin that makes the ball curve horizontally left or right.
Excessive side spin may indicate off-center strikes or swing path issues.
Back Spin
The backward rotation of the ball.
Helps to generate lift and control and is essential for stopping power on approach shots.
Launch Direction
The initial horizontal angle at which the ball starts relative to the target line.
Launch direction is influenced by the face angle at impact.
Club
Club Speed
The speed of the club head at the moment of impact.
Faster club speed generally leads to greater distance, assuming efficient energy transfer.
Smash Factor
The ratio of ball speed to club speed.
A higher smash factor indicates a well-struck shot.
Attack Angle
The vertical direction (upward or downward) of the club head’s path as it strikes the ball.
Drivers are typically hit on the upswing (+), and irons on the downswing (−).
Club Path
The direction the club head is traveling horizontally through impact relative to the target line.
Influences shot shape, out-to-in paths often create fades, while in-to-out paths produce draws.
Face Angle
The horizontal direction the clubface is pointing at impact - open (right), closed (left), or square (straight).
Face angle strongly influences the ball's start direction. Open faces start right, closed faces start left.
Face To Path
The difference between the club face angle and the club path.
A key number in understanding why a ball curves left or right.
Lie Angle
The angle between the club shaft and the ground at impact.
A lie angle too upright or too flat can cause directional misses.
Dynamic Loft
The loft presented to the ball at impact.
Influences launch angle and spin rate.
Closure Rate
The rate at which the club face is rotating around the shaft axis through impact.
Faster closure rates can lead to more draw or hook tendencies.
Horizontal Impact
The position of the ball’s contact point on the club face from heel to toe.
Shots struck closer to the center yield better energy transfer and control.
Vertical Impact
The position of the ball’s contact point on the club face from bottom to top.
High or low strikes influence launch and spin characteristics.
Other
Proximity to Pin
The distance from where the ball comes to rest to the position of the pin or center of the target.
Closer proximity means higher scoring opportunities and a good measure of approach shot effectiveness.
Resulting Lie
Describes the surface or condition the ball ends up in after the shot such as fairway, rough, or bunker.
Helps evaluate shot accuracy and how the result impacts the next shot.
Strokes Gained
A statistical measurement comparing the effectiveness of a shot to a benchmark based on a Reference Handicap.
Offers insight into how much a shot helps or hurts scoring compared to a typical player at the selected skill level.
Target Distance
The total distance from the starting point of the shot to the intended hole or center of the target.
Near Target
The distance from the ball’s final resting position to the closest physical range target such as a flag or circle marker.
Reference Handicap
The handicap level a player selects to compare their performance against when starting a Toptracer30 or Toptracer12 session.
Used as the baseline for strokes gained analysis. This is not the player’s actual skill level but a reference point for benchmarking.
Performance Handicap
A real-time measure of a player’s golfing ability calculated during Toptracer30 or Toptracer12 sessions.
Based on strokes gained and shot data from all observed tee and approach shots. It fluctuates more than a traditional handicap because it considers every shot instead of only the best rounds. Useful for tracking ball-striking consistency and identifying long-game improvement over time.
Calculations
Average (AVG)
The mean value of all valid shots recorded for a selected metric.
Provides a general performance baseline and helps spot trends over time.
Consistency (±)
Shows how tightly the shots are grouped. It’s based on standard deviation, which measures how far each shot is from the average.
A low number means shots are similar. A high number means they’re more spread out.
Minimum (Min)
The lowest value recorded for a specific parameter for that group of shots.
Useful for identifying underperformance or outlier shots.
Maximum (Max)
The highest value recorded for a specific parameter for that group of shots.
Highlights peak performance or best-case scenarios.
